5th October, 2020

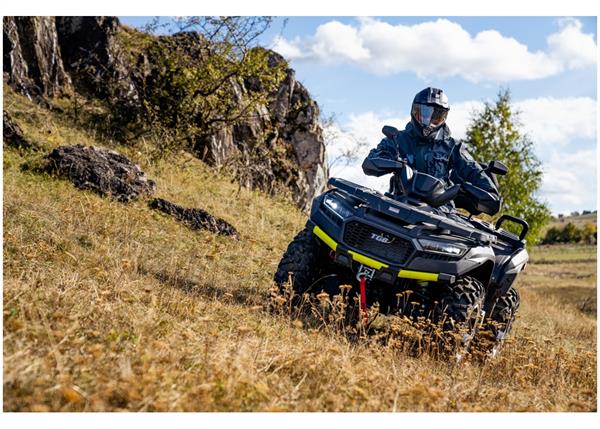

The Blade series from leading Taiwanese manufacturer TGB comprises a number of high-spec, sensibly-priced road-going agricultural and utility ATVs. Sitting right at the top of the range is the flagship TGB Blade 1000 LTX.

With its line-up of mid to high-capacity machines, TGB offers a solution for most agricultural and utility situations where a tough but nimble machine is required. And, when a shot of additional muscle and power is needed, the Blade 1000 is more than ready to step up to the challenge.

Combining a powerful 997cc V-Twin EFI engine with re-profiled camshafts designed to increase low-end torque and give a more linear power curve, the big Blade gives the rider more usable power in all riding conditions. It has front and rear differentials to provide confidence-inspiring on and off-road handling, together with three-mode adjustable electric power steering and hydraulic shocks.

Upfront, a full LED headlight system is set in a stylish and aggressive front wrap-round body panel, with a removable front grill and strip indicators, all topped off with a roomy and strong front rack. The TGB is a full-size, two-up machine with a comfortable passenger seat that features pillion grab bars, back rest and rear rack. A digital dash, tow hitch and electronic winch completes the Blade 1000 LTX package. It is also fully Euro 4-compliant.

With an unparalleled five-year manufacturer warranty, and a price point under £9000 plus VAT, this is one machine that is truly fit for purpose.

Bore/stroke; 92 x 75.0mm
Capacity; 997cc
Clutch; Automatic - CVT
Compression ratio; 10.2
Cooling; Liquid cooled
Drive type; 2/4-wheel drive, selectable
Dry weight mass; 380 kg
Electric power steering; Yes
Electrical outlet connector; DC 12V 10A 120W
Engine braking system (SBS); Standard
Engine Type; 4-stroke V-Twin
Final drive; Shaft
Front brakes; 230mm dual hydraulic disc
Front differential; Electric lock
Front rack (max loading); 30kg
Front shock absorbers; EVO hydraulic 220mm wheel travel
Rear brakes; 210mm dual hydraulic disc
Rear differential; Electric lock
Rear rack (max loading); 50kg
Rear shock absorbers; EVO hydraulic 242mm wheel travel
Front/rear suspension; Independent double A-arm
Fuel system; Electronic Fuel Injection
Fuel tank capacity; 23 litres
Gear selection; L/H/N/R/P
Gearbox; Automatic gears
Ground clearance; 295mm
Max power; 86hp (off-road)
Max Torque; 77.7nm
Overall height; 1290 mm
Overall length; 2330 mm
Overall width; 1200 mm
Start type; Electric
Tow hitch; Yes
Transmission type; V-belt CVT automatic
Unbraked towing capacity; 894kg
Warranty; 5 year manufacturer limited warranty
Winch: Yes

SRP: £8,749.00 excluding VAT

For further product information and stockist details, contact the UK distributor for TGB:
T: 01623 708607
