April 21st, 2020.

For over forty years, TGB has been specialising in the production of high-quality, high-end ATVs that are particularly suited to the agricultural, forestry and land management industries.

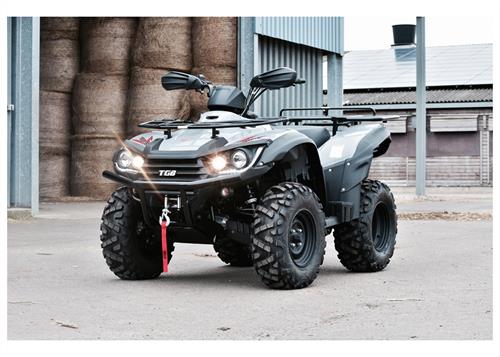

The TGB Blade 520 model is available in two guises; SL and SL EPS, and is a solid example of the attention to detail the manufacturer incorporates in its range of hard-working ‘little tractors’. The machines boast a long list of essential features fitted as standard and, underlining its belief in the quality of the products, the UK distributor Dualways provides a confidence-inspiring five-year limited warranty on all its TGB models.

Whether tackling challenging terrain to reach a hard-to-get-to situation, making light work of daily chores around the farm, or hooking up with an implement for a spot of crop-management, the Blade 520 is a useful addition to any farmer’s arsenal of work machinery. It is powered by TGB’s tried-and-tested, high-torque, 503cc four-stroke, single-cylinder petrol engine equipped with electronic fuel injection. The Blade produces 40hp in off-road specification and runs through a selectable two/four-wheel drive.

The TGB package includes a digital dash, front and rear racks, fully-adjustable front suspension, a winch, and a tow-bar with 850kg pulling capacity. It is homologated as T3, which means it can be registered for road use.

The Blade 520SL/EPS is available in grey.

SRP: Blade 520SL £5299.00. Blade 520SL EPS £5899.00 (including VAT).

Bore & stroke; 92 X 75.6 mm
Capacity; 503cc
Clutch; Automatic -CVT
Compression ratio; 10.2
Cooling; Liquid cooled
Drive type; 2/4 wheel drive selectable
Transmission type; V-belt CVT automatic
Electric power steering; 520SL EPS
Electrical outlet connector; DC 12V 10A 120W
Engine type; 4-stroke single cylinder
Final drive; Shaft
Front/rear brakes; Disc
Front/rear shock absorbers; Preload adjustable hydraulic
Front suspension; Fully adjustable
Fuel system; Electronic Fuel Injection
Fuel tank capacity; 18 litres
Gearbox; Automatic
Ground clearance; 305mm
Max power; 40HP (off-road)
Max torque; 46.1 NM
Overall height; 1502mm
Overall length; 2120mm
Overall width; 1240mm
Rear suspension; Swing arm
Start type; Electric
Tow hitch; Yes
Unbraked towing capacity; 850kg
Winch; Yes
Warranty; 5 Year Manufacturer Limited Warranty

For model availability, further information and local stockist details, contact the UK distributor Dualways.

Contact: Dualways
T: 01623 708607
